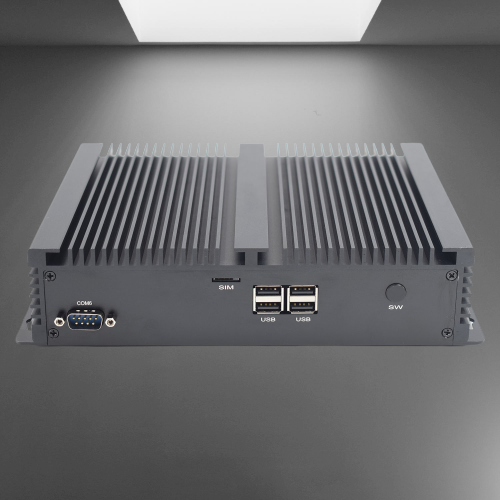

TRONVTXAT

Model: H4-i3-8145U
CPU: Intel® Core™ i3-8145U Processor
4M Cache, up to 3.90 GHz
Dual Core 4 threads
Model: H4-i5-8265U
CPU: Intel® Core™ i5-8265U Processor
6M Cache, up to 3.90 GHz
Quad Core 8 threads
Model: H4-i7-8565U
CPU: Intel® Core™ i7-8565U Processor
8M Cache, up to 4.60 GHz
Quad Core 8 threads

SKU: 007 Category: Tags: , , , ,
Description
Basic information
CPU                                 Intel 14 nm Core i3-8145U/i5-8265u /i5- 8365U/i7-8565u,
Code Name                  Whiskey Lake
Memory                        2 x DDR4-2400 SO-DIMM max 64GB RAM
Storage                          1 x M.2 KEY M for SATA&PCIE4X bus SSDs 2 x
SATA3.0 for 2.5 inch HDD/SSDs
No storage capacity limitation
Main Chips                    ITE8786E-EX, 128Mb SPI BIOS, RT3602AH
VRM, ALC662-VD Audio Chip (5.1 audio out)
Graphics                        Intel®UHD Graphics 620
LAN                                 2 x INTEL-I210/I211 Gigabit RJ45 Lan;
WiFi
Module                          1 x M.2 Wi-Fi / Bluetooth Module 1 x M.2 4G
Wi-Fi
Antenna                         2 x inner antennas and 2 x outer antennas
Others
Power                            Support Advanced Power Management
ACPI, wake on lan S4 S5, Auto power on, watch dog
Temperature                -15℃~65℃
Humidity                       0%-95% relative humidity
OS                                   Windows 7, Windows 8, Windows 10, Linux
Input/output Ports
Switch                            1 x Power On/Off Switch
USB                                 4 x USB 3.1, 4 x USB 2.0
Display 1 x HDMI 4096×2160@60Hz(HDMI2.0)1 x DP Port – 4096×2304@60Hz(EDP1.4)1 x TYPEC – Output 5V/3A, USB3.1, DPto4K@60Hz
support 3 Synchronized displays
Power                            1 x 12V DC In
Lan                                  2 x RJ45 Giga Lan Port, 2 x WiFi Antennas
COM                               4 x RS232 Port, 2 x RS485 Port
Audio                              1 x SPK Out, 1 x MIC In
SIM                                 1 x SIM Port
LVDS                               1 x 2*15 PIN LVDS onboard
Mechanical
Case Material               AluminumAlloy
Dimension                    PC size 237*175*53mm package size 320*260*80mm
Weight                           Net 1.65kg Gross 2. 8kg
Design                            Fanless cooling pin ca design
Mounting                      4 mounting holes on case ing Optional VESA mount
Design                            Fanless cooling pin ca design
Additional Information
Weight 2 kg
Dimensions 25 × 20 × 25 cm
